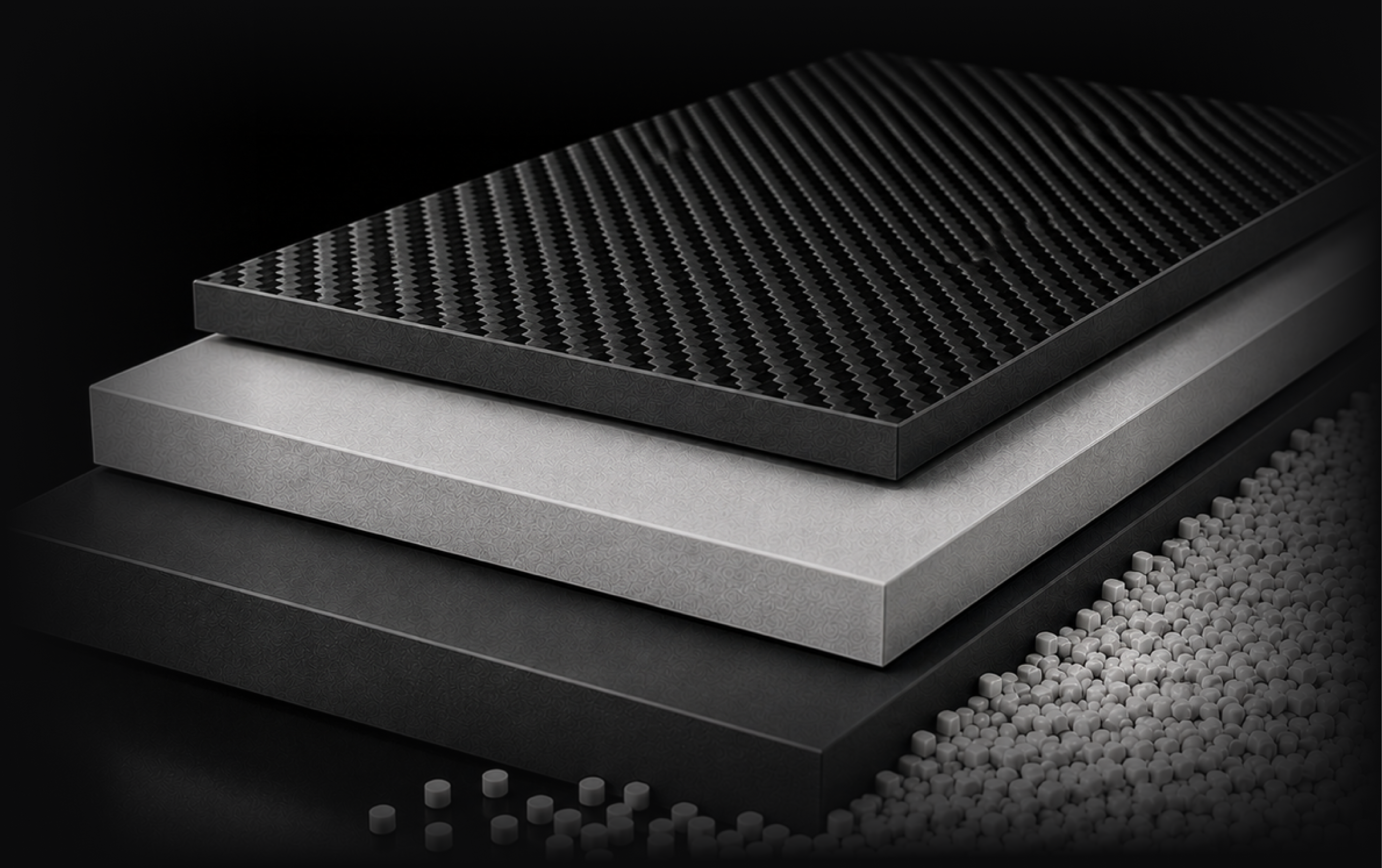

Akusta passive fire protection material
PRODUCTS

Engineered Thermoplastic
Fire Protection Materials

Akusta Materials are available as granulates for molding and as sheets in various thicknesses and laminate combinations to meet the specific requirements of your applications.

High Fire Protection

Endothermic reaction absorbs heat and slows flame spread.

Lightweight & Strong

High mechanical strength at low material density.

No Smoke, No Toxicity

no SMOKE no TOXICITY

Custom Solutions

Tailored forms, thicknesses and laminate combinations.

GRANULATES

Granulates

Akusta granulates are based on a polyolefin matrix with high content of aluminium hydroxide (ATH). Suitable for injection molding and extrusion.

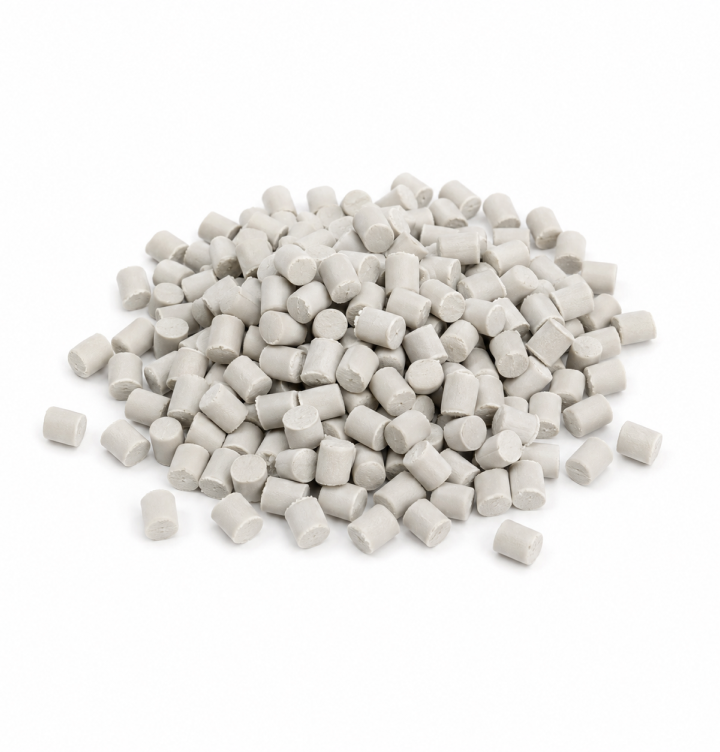

SOFT GRANULATE — ATH 70S
For extruded sheets & thermoformed parts
Designed for sheet extrusion
Excellent thermoformability
Flexible (Shore A ~61)
Good impact resistance
Easy processing
Typical applications
  • Fire protection sheets
  • Thermoformed battery liners
  • Door core inserts
  • Interior panels
  • Laminated composites
Data Sheet (PDF)

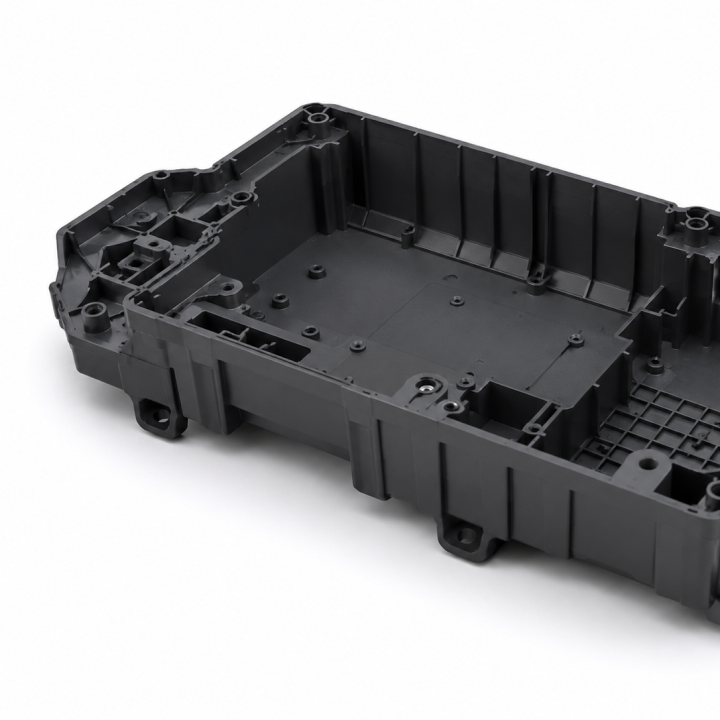

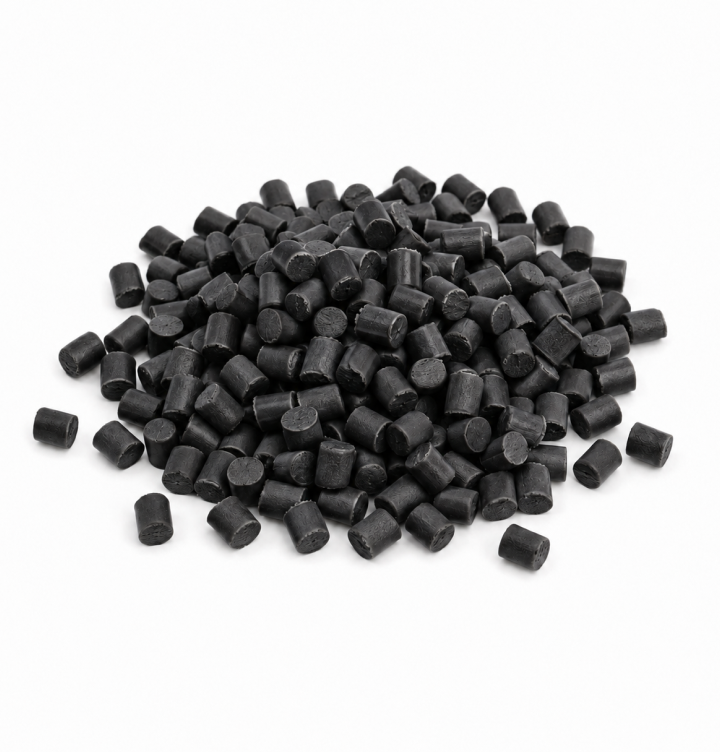

HARD GRANULATE — ATH 60H
For injection molded components
Designed for injection molding
High stiffness
High mechanical strength
Dimensional stability
Excellent heat resistance
Typical applications
  • Battery housings
  • Electrical enclosures
  • Structural components
  • Cable management parts
  • Automotive components
Data Sheet (PDF)

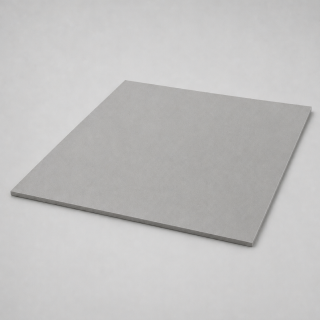

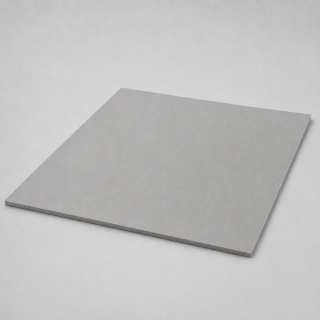

SHEETS

Sheets

Akusta sheets offer excellent fire protection with high mechanical performance. Available in different thicknesses.

1 mm
3 mm
5 mm
Property
Unit
Value
Density
g/cm³
1.50
Tensile Strength
MPa
9.0
Flexural Strength
MPa
15
Shore Hardness
Shore A
61
HDT
°C
89
Flammability
UL 94
V-0

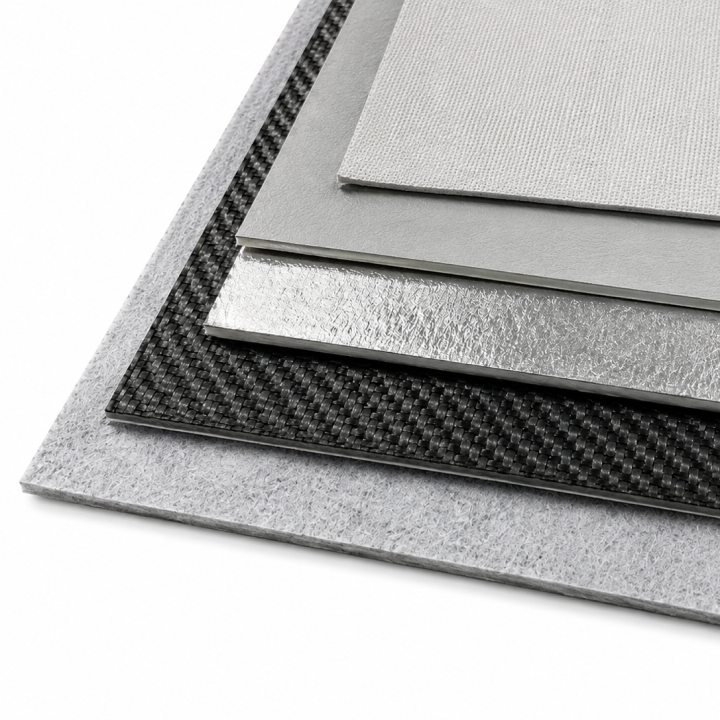

LAMINATES & REINFORCED SHEETS

Laminates & Reinforced Sheets

Glass Fiber Reinforced
  • High strength
  • Dimensional stability
  • Structural use
Felt
Laminate
  • Surface protection
  • Noise damping
  • Improved handling
Aluminum Foil Laminate
  • Heat reflection
  • Vapor barrier
  • Thermal insulation
Silicone
Leather
  • Surface finish
  • Abrasion resistance
  • Easy to clean
Other
Laminates
  • Different fabrics
  • Special coatings
  • Application specific
AVAILABLE FORMS

From Granulate to Finished Parts

01

Granulate

For injection molding & extrusion

02

Sheets

1–5 mm standard thicknesses

03

Laminated Sheets

With various surface materials

04

Reinforced Sheets

Glass-fiber reinforced options

05

Custom Parts

Finished to your specification
